SEMOTO® 4JB1 Series Diesel Engine

SEMOTO® 4JB1 Series Diesel Engine

SEMOTO® 4JB1 series Diesel engine – light vehicle. Adopting matured ISUZU technology, high reliability, stability and economic features, compact design with strong power output, easy maintenance and low maintenance cost. Great economic power solution for mini-van and light truck with capacity less than 3 tons. Spare parts are conveniently available worldwide.
Send Inquiry
Description
Technical Parameters

Item

4JB1

4JB1T

Configuration

Vertical in-line, 4-cylinder, water cooled, diesel engine

Chamber of combustion

Direct injection

Firing order

1-3-4-2

Rated power/speed - kW/rpm

57/3600

68/3600

Max. torque/speed - N.m/rpm

172/2200

230/2200

Bore*stroke - mm

93*102

Displacement - L

2.771

Compression ratio

18.2:1

Idle speed - rpm

750±40

Min. fuel consumption - g/kW.h

221

219

Fuel injection system

VE rotary fuel injection pump

Lubricating method

Pressure & splash combined type

Rotation of crankshaft

Counter-clockwise - viewed from flywheel

Aspiration

Natural

Turbo

Emission level

Euro 2 - 6

Dimension - mm

719*615*679

719*680*679

Dry weight - kg

229

250

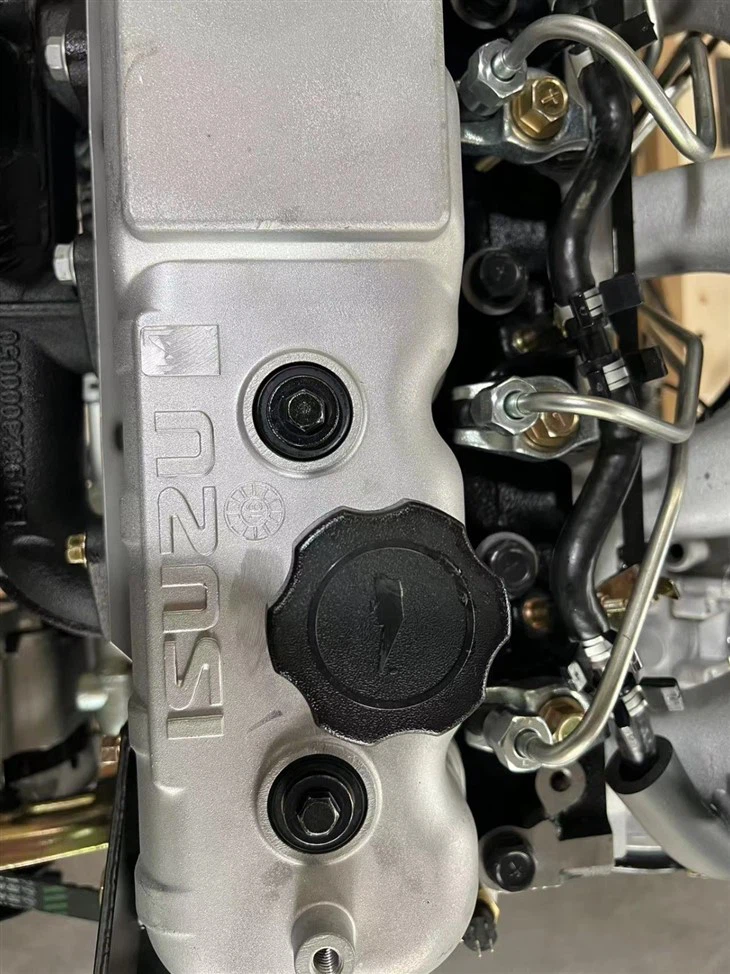

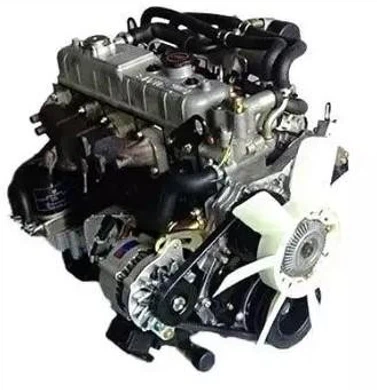

* Above image is for presentation only, and it might be slightly different from real product.



FAQ

Delivery and Shipping

Delivery time

35-40days after receiving the deposit

Shiping
1 unit/20GP
2 units/40HQ
Ro-Ro Ship/Bulk Ship
