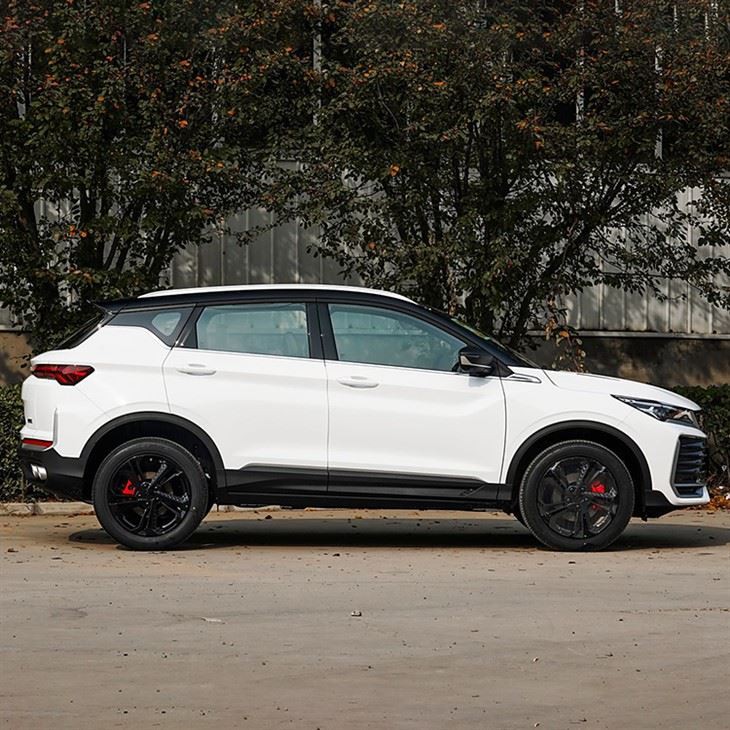

Exterior Design: The 2025 Geely Bin Yue Super Edition adopts the "Super Energy Storm" design language. The front face features a rich array of design elements, including a shield-shaped grille with an embedded brand logo, a trapezoidal air intake, LED daytime running lights, headlamp units, and air vents, all of which create a strong visual impact. The car's dimensions are 4330x1800x1609mm, with a wheelbase of 2600mm.
Interior Features: The 2025 Geely Bin Yue Super Edition features a simple and practical interior design. The manual version is equipped with an 8-inch central touchscreen, a standard instrument panel, a multifunction steering wheel, faux leather seats, keyless start, reverse camera, and cruise control, all of which meet daily usage needs. The automatic version comes with more advanced features.
Powertrain: The 2025 Geely Bin Yue Super Edition is powered by a 1.5L naturally aspirated engine, delivering a maximum power output of 93kW (126PS) and a peak torque of 152Nm. It is paired with either a 6-speed manual transmission or a CVT transmission. The WLTC combined fuel consumption is 6.46L for the manual version and 6.89L for the automatic version.
| MODEL | 2025 coolray 1.5L manual super power version | coolray 2025 1.5L CVT Super power version | 2025 coolray L 1.5TD DCT Star Diamond | 2025 coolray L 1.5TD DCT Star Shine |
| Manufacturer | Geely Automobile | Geely Automobile | Geely Automobile | Geely Automobile |
| Rank | Small SUV | Small SUV | Small SUV | Small SUV |
| Energy type | gasoline | gasoline | gasoline | gasoline |
| Time to market | The 2024-07 | The 2024-07 | The 2024-11 | The 2024-11 |
| Engine | ||||
| Engine type | BHE15-AFD | BHE15-AFD | BHE15-EFZ | BHE15-EFZ |
| engine | 1.5L/L4/126 HP | 1.5L/L4/126 HP | 1.5T/L4/181 HP | 1.5T/L4/181 HP |
| Intake form | Natural aspiration | Natural aspiration | turbocharging | turbocharging |
| gearbox | Manual operation | Stepless speed change | Wet double clutch | Wet double clutch |
| Maximum engine horsepower (Ps) | 126 | 126 | 181 | 181 |
| Maximum engine power (kW) | 93 | 93 | 133 | 133 |
| Maximum engine torque (N·m) | 152 | 152 | 290 | 290 |
| Maximum speed (km/h) | 175 | 170 | 200 | 200 |
| Official 0-100km/h acceleration (s) | 7.6 | 7.6 | ||
| WLTC Combined Fuel consumption (L/100km) | 6.46 | 6.89 | 6.35 | 6.35 |
| Tank capacity (L) | 45 | 45 | 45 | 45 |
| Displacement abbreviation (L) | 1.5 | 1.5 | 1.5 | 1.5 |
| Volume (mL) | 1499 | 1499 | 1499 | 1499 |
| Engine layout | Hold horizontally | Hold horizontally | Hold horizontally | Hold horizontally |
| Maximum engine horsepower (Ps) | 126 | 126 | 181 | 181 |
| Power (kW)/ Maximum power speed (rpm) | 93/6300 | 93/6300 | 133/5500 | 133/5500 |
| Maximum torque (N·m)/ Maximum torque speed (rpm) | 152/4000-5000. | 152/4000-5000. | 290/2000-3500. | 290/2000-3500. |
| Cylinder arrangement | orthostitial | orthostitial | orthostitial | orthostitial |
| Number of cylinders (PCS) | 4 | 4 | 4 | 4 |
| Engine specific technology | DVVT | DVVT | DVVT | DVVT |
| Fuel oil label | 92 (formerly 93) | 92 (formerly 93) | 92 (formerly 93) | 92 (formerly 93) |
| Oil supply mode | Direct injection | Direct injection | Direct injection | Direct injection |
| Cylinder head material | Aluminium alloy | Aluminium alloy | Aluminium alloy | Aluminium alloy |
| Valve mechanism | DOHC | DOHC | DOHC | DOHC |
| Cylinder block material | Aluminium alloy | Aluminium alloy | Aluminium alloy | Aluminium alloy |
| Stepless speed change | 7 | 7 | 7 | 7 |
| gearbox Number of gears |
5 | 5 | 5 | 5 |
| Driving mode | front-drive | front-drive | front-drive | front-drive |
| Front suspension type | McPherson type | McPherson type | McPherson type | McPherson type |
| independent | suspension | suspension | suspension | suspension |
| Rear suspension type | Torsion beam type | Torsion beam type | Torsion beam type | Torsion beam type |
| non-independent | suspension | suspension | suspension | suspension |
| Body | ||||
| Body type | 5 door 5 seat SUV | 5 door 5 seat SUV | 5 door 5 seat SUV | 5 door 5 seat SUV |
| Length × width × height (mm) | 4330 * 1800 * 1609 | 4330 * 1800 * 1609 | 4330 * 1800 * 1609 | 4330 * 1800 * 1609 |
| Wheelbase (mm) | 2600 | 2600 | 2600 | 2600 |
| Front/rear wheel base (mm) | 1551/1562 | 1551/1562 | 1546/1557 | 1546/1557 |
| Vehicle weight (kg) | 1255 | 1289 | 1350 | 1350 |
| Door opening mode | Swing door | Swing door | Swing door | Swing door |
| Maximum load weight (kg) | 1630 | 1664 | 1725 | 1725 |
| Wheel braking | ||||
| Front tire specification | 215/65 R16 | 215/60 R17 | 215/60 R17 | 215/55 R18 |
| Rear tyre specification | 215/65 R16 | 215/60 R17 | 215/60 R17 | 215/55 R18 |
| Front brake type Ventilated disk type |
Ventilated disk type | Ventilated disk type | Ventilated disk type | Ventilated disk type |
| Rear brake type Disc type |
handbrake | handbrake | handbrake | handbrake |
| Off-road performance | ||||
| Approach Angle (°) | 18 | 18 |
20 | 20 |
| Departure Angle (°) | 21 | 21 | 28 | 28 |
| Active security configuration | ||||
| ABS anti-lock | Standard configuration | Standard configuration | Standard configuration | Standard configuration |
| Braking force distribution (EBD/CBC, etc.) | Standard configuration | Standard configuration | Standard configuration | Standard configuration |
| Brake assistance (EBA/BAS/BA, etc.) | Standard configuration | Standard configuration | Standard configuration | Standard configuration |
| Traction control (ASR/TCS/TRC etc.) | Standard configuration | Standard configuration | Standard configuration | Standard configuration |
| Body stability control (ESP/DSC/ESC etc.) | Standard configuration | Standard configuration | Standard configuration | Standard configuration |
| Anti-roll stabilization system (RSC/ARP/ERM, etc.) | Standard configuration | Standard configuration | Standard configuration | Standard configuration |
| Tire pressure monitoring device | Tire pressure display | Tire pressure display | Tire pressure display | Tire pressure display |
| Seat belt is not fastened | Front row | Front row | Front row | Front row |
| Passive security configuration | ||||
| Driver's seat airbag | Standard configuration | Standard configuration | Standard configuration | Standard configuration |
| Passenger airbag | Standard configuration | Standard configuration | Standard configuration | Standard configuration |
| ISO FIX child seat interface | Standard configuration | Standard configuration | Standard configuration | Standard configuration |
| Driver assistance configuration | ||||
| Cruise control system | Constant cruising | Constant cruising | Constant cruising | Constant cruising |
| Parking video system | Astern image | Astern image | 360 degree panoramic images | 540 degree panoramic image/transparent chassis |
| Driving mode switching | Standard/Comfort economy movement Standard/Comfort economy movement |
Standard/Comfort economy movement Standard/Comfort economy movement |
Standard/Comfort economy movement Standard/Comfort economy movement |
Standard/Comfort economy movement Standard/Comfort economy movement |
| Uphill aid | Standard configuration | Standard configuration | Standard configuration | Standard configuration |
| Automatic parking | Standard configuration | Standard configuration | Standard configuration | Standard configuration |
| Descend gently on a steep slope | Standard configuration | Standard configuration | Standard configuration | |
| Multimedia configuration | ||||
| System name | GKUI Jike Smart Ecosystem | GKUI Jike Smart Ecosystem | Flyme Auto | Flyme Auto |
| Central control color screen | Standard configuration | Standard configuration | Standard configuration | Standard configuration |
| Screen operation mode | Touch control | Touch control | Touch control | Touch control |
| Center control screen size | 8 inches | 8 inches | 14.6 inches | 14.6 inches |
| Mobile interconnection/mapping | Original interconnection/mapping | Original interconnection/mapping | HUAWEI HiCar Flyme Link Carlin |
HUAWEI HiCar Flyme Link Carlin |
| Bluetooth/car phone | Standard configuration | Standard configuration | Standard configuration | Standard configuration |
| Interface type | USB | 12V | USB | 12V |
| Number of USB/Type-C ports | First 1/ last 1 | First 2/ last 1 | First 2/ last 1 | First 2/ last 1 |
| Number of speakers | 6 | 6 | 6 | 6 |
| Mobile APP remote control | Door control Window control Vehicle starting Air conditioning control Vehicle condition inquiry/diagnosis Door control Window control Vehicle starting Air conditioning control Vehicle condition inquiry/diagnosis |
Door control Window control Vehicle starting Air conditioning control Vehicle condition inquiry/diagnosis Door control Window control Vehicle starting Air conditioning control Vehicle condition inquiry/diagnosis |
Door control Window control Vehicle starting Air conditioning control Vehicle condition inquiry/diagnosis Door control Window control Vehicle starting Air conditioning control Vehicle condition inquiry/diagnosis |
Door control Window control Vehicle starting Air conditioning control Vehicle condition inquiry/diagnosis Door control Window control Vehicle starting Air conditioning control Vehicle condition inquiry/diagnosis |
