Nio ET5 Sedan Exterior Design

NIO ET5 is currently available in two versions, the ET5 model equipped with 75kWh battery version is priced at 328,000 yuan before subsidies, and the version equipped with 100kWh battery is priced at 386,000 yuan before subsidies. Using the battery rental plan, it needs 25800 yuan, and the battery monthly fee is 980/1480 yuan per month.

In terms of power, NIO ET5 is equipped with dual motor intelligent four-wheel drive system, the maximum power of the front motor is 150kW, the maximum power of the rear motor is 210kW, the total power of the motor is 360kW, the total torque of the motor is 700N·m, and the acceleration of 100 km takes only 4.3 seconds. In terms of endurance, the car offers three versions with a range of 550 km, 700 km and 1000 km.

product-945-398

product-946-451

Nio ET5 parameters

Voltage:	350V
Total Motor power(kw):	360
Seats number:	5
Type:	BEV
Body Type:COMPACT	middle sedan

Model NO.	NIO ET5 75kWh	NIO ET5 100kWh
Steering	Left	Left
NEDC max.range(km)	560	710
Gear Box	Automatic	Automatic
Dimension	4790x1960x1499	4790x1960x1499
0-100km/h acceleration time (s)	4	4
Power consumption per 100 km (kWh/100km)	16.9	15.1
Electrical energy equivalent fuel consumption (L/100km)	1.73	1.71
Wheelbase(mm)	2888	2888
Curb Weight(kg)	2180	2180
Drag coefficient (Cd)	0.24	0.24
Total Motor power(kw)	360	360
Total Horsepower(Ps)	490	490
Total motor torque(N.M)	700	700
Drive	AWD	AWD
Battery type	Lithium iron phosphate battery+Ternary lithium battery	Ternary lithium battery
Battery capacity(kWh)	75	100
Fast Charge	0.6 h	0.8 h
Slow charge	9 h	10 h
Steering System	Electric	Electric
Tire Size	245/45 R19	245/45 R19
Driver assistance camera	Reversing image/360°/transparent imagery	Reversing image/360°/transparent imagery
Auxiliary driving	L2(CCS -Cruise control system ;ACC -Adaptive Cruise Control;FSRA -Full Speed Range ACC)/L3(CCS -Cruise control system ;ACC -Adaptive Cruise Control;FSRA -Full Speed Range ACC;Automatic lane change assist;Automatic exit (entry) on ramps;)	L2(CCS -Cruise control system ;ACC -Adaptive Cruise Control;FSRA -Full Speed Range ACC)/L3(CCS -Cruise control system ;ACC -Adaptive Cruise Control;FSRA -Full Speed Range ACC;Automatic lane change assist;Automatic exit (entry) on ramps;)
Radar	Ultrasonic radar 12 Millimeter wave radar 5 Laser Radar 1	Ultrasonic radar 12 Millimeter wave radar 5 Laser Radar 1

Nio ET5 Appearance Design Details Show

product-937-414

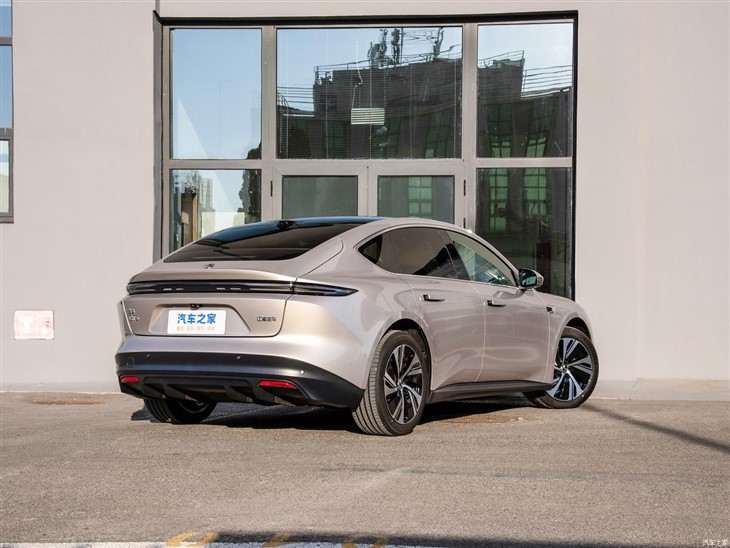

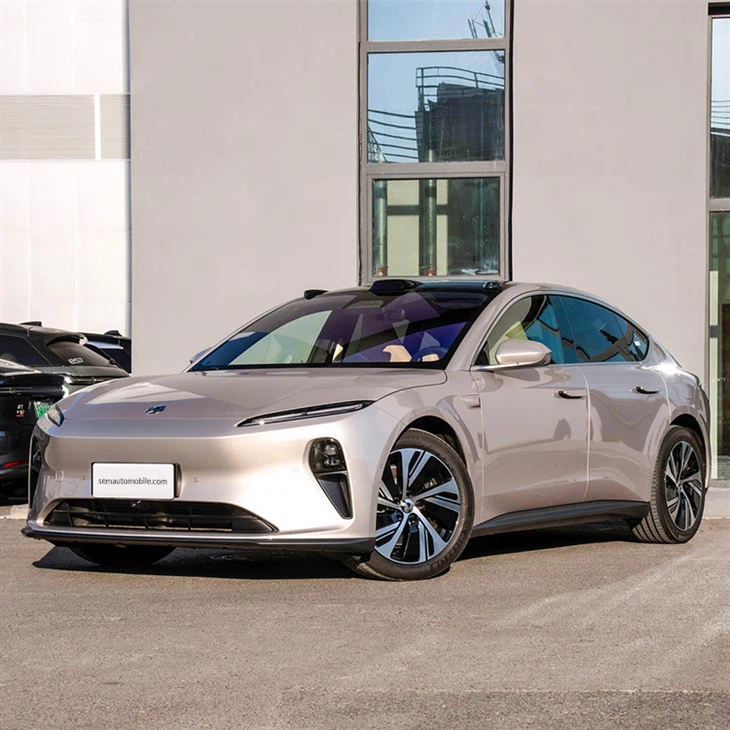

In terms of appearance, the Nio ET5 front face maintains the simple design of the family, equipped with split LED light group, the light group shape is sharp. The side concealed door handle reduces the drag coefficient to 0.24Cd, coupled with sporty brake calipers, the sliding back body and smooth lines give the new car a sense of movement, and the rear uses a through-line taillight, which is very stylish.

In terms of body color, the new car has 9 body colors and 6 interior themes to choose from, which is very fragrant for young people.

According to the body size, the WEilai ET5 length, width and height 4790/1960/1499 mm, the wheelbase reaches 2888 mm, is the size of a medium-sized car.

product-1089-286

Interior space and configuration

Nio ET5 rear row space is good, to meet the needs of daily travel no problem. In addition, the car is equipped with fatigue warning, brake anti-lock (ABS), LED daytime running lights, brake assist (EBA/BAS, etc.), brake force distribution (EBD) main driver airbag, passenger airbag, side safety air curtain, front side airbag and other safety feature

In terms of intelligent driving assistance, NIO ET5 uses 33 high-performance sensing hardware, including lidar, 7 8-megapixel high-definition cameras, and 19 auxiliary driving functions are standard in the whole system, which is still relatively rare at the same level.

product-1400-1050
