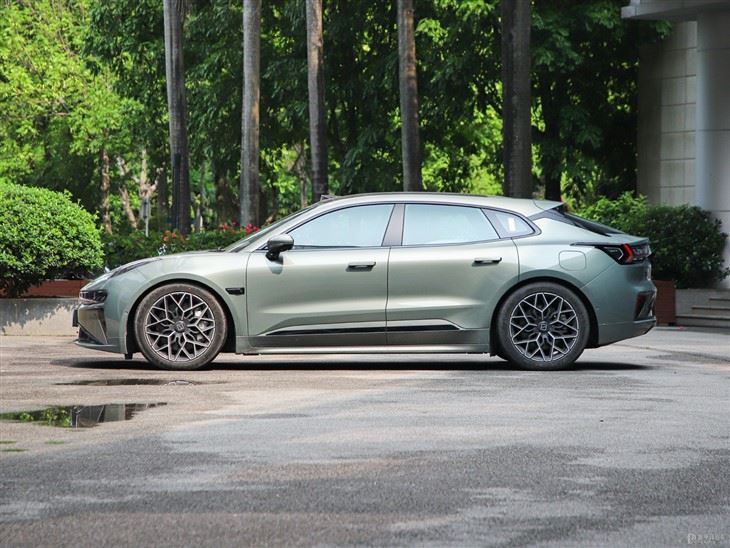

ZEEKR 001 all electric sedan
As a crossover model, ZEEKR 001 is very similar to Porsche Panamera in terms of body size. Therefore, from this perspective, Polkrypton dares to position the brand's first car as a shooting brake (hunting suit version), mostly because Panamera has given this design a "high-end" image. Under this cognitive background, Cross-border, not only more niche, more flavor, but also more safe.
The body size of the Polkr 001 is long x wide x high: 4970x1999x1560mm, and the wheelbase is 3005mm, which is the largest car in the whole Geely Group (excluding Volvo), and the frameless door is also the only one of the Lynk & Co brand. At the same time, it is also based on the SEA (Sustainable Experience Architecture) vast architecture development, will be the first model of the pure level station.
ZEEKR 001 has a single, dual motor two specifications, the front and rear two permanent magnet synchronous motor version maximum power 400 kW, peak torque 768 N·m, 100 km acceleration time 3.8s. Looking for a known reference, the Porsche Taycan 4S maximum power 390kW, maximum torque 640Nm, 100 km acceleration time 4 s whole, 100 km braking distance 34.5m, to be honest, this system, there is really something.
New Energy Vehicle Electric Car ZEEKR 001
| ZEEKR 001 | 2023 WE version 86kWh | 2023 ME version 100kWh | 2023 YOU version 100kWh |
| manufacturers | Extreme krypton | Extreme krypton | Extreme krypton |
| level | medium and large car | medium and large car | medium and large car |
| energy type | pure electric | pure electric | pure electric |
| time to market | Jan-23 | Jan-23 | Jan-23 |
| electric motor | Pure electric/544 horsepower | Pure electric/544 horsepower | Pure electric/544 horsepower |
| gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox |
| Motor maximum horsepower (PS) | 544 | 544 | 544 |
| Total motor power (kW) | 400 | 400 | 400 |
| Motor total torque (N m) | 686 | 686 | 686 |
| CLTC pure electric cruising range (km) | 546 | 656 | 656 |
| battery charging time | Fast charge: to be determined / slow charge: to be determined | Fast charge: to be determined / slow charge: to be determined | Fast charge: to be determined / slow charge: to be determined |
| Power consumption per 100 kilometers (kWh/100km) | 17.4 | 17.5 | 16.5 |
| body type | 5 door 5 seat hatchback | 5 door 5 seat hatchback | 5 door 5 seat hatchback |
| Length × width × height (mm) | 4970×1999×1560 | 4970×1999×1560 | 4970×1999×1548 |
| Wheelbase (mm) | 3005 | 3005 | 3005 |
| Maximum speed(km/h) | 200 | 200 | 200 |
| Official 0-100km/h acceleration (s) | 3.8 | 3.8 | 3.8 |
| Electric energy equivalent fuel consumption (L/100km) | 1.97 | 1.98 | 1.87 |
| Vehicle Warranty | Six years or 150,000 kilometers | Six years or 150,000 kilometers | Six years or 150,000 kilometers |
| Battery Warranty Time | The first owner has unlimited years/mileage (the liability exemption clause shall be subject to the official policy) | The first owner has unlimited years/mileage (the liability exemption clause shall be subject to the official policy) | The first owner has unlimited years/mileage (the liability exemption clause shall be subject to the official policy) |
| body | |||
| body type | hatchback | hatchback | hatchback |
| Length (mm) | 4970 | 4970 | 4970 |
| Width (mm) | 1999 | 1999 | 1999 |
| height (mm) | 1560 | 1560 | 1548 |
| Wheelbase (mm) | 3005 | 3005 | 3005 |
| Front track(mm) | 1703 | 1703 | 1713 |
| Rear track(mm) | 1716 | 1716 | 1726 |
| Minimum ground clearance (mm) | 174(no load) | 174(no load) | 162(no load) |
| Minimum turning radius (m) | 5.9 | 5.9 | 5.9 |
| Vehicle weight(kg) | 2290 | 2350 | 2350 |
| Door opening method | side hinged door | side hinged door | side hinged door |
| The maximum volume of the trunk (L) | 2144 (seat down) | 2144 (seat down) | 2144 (seat down) |
| Maximum full load mass (kg) | 2780 | 2840 | 2840 |
| Motor/Battery | |||
| motor type | Permanent magnet synchronous | Permanent magnet synchronous | Permanent magnet synchronous |
| Motor maximum horsepower (PS) | 544 | 544 | 544 |
| Total motor power (kW) | 400 | 400 | 400 |
| Motor total torque (N m) | 686 | 686 | 686 |
| Maximum power of the front motor (kW) | 200 | 200 | 200 |
| Front motor maximum torque (N m) | 343 | 343 | 343 |
| Maximum power of rear motor (kW) | 200 | 200 | 200 |
| Maximum torque of rear motor (N m) | 343 | 343 | 343 |
| drive mode | pure electric | pure electric | pure electric |
| Number of drive motors | dual motor | dual motor | dual motor |
| Motor layout | front + rear | front + rear | front + rear |
| CLTC pure electric cruising range (km) | 546 | 656 | 656 |
| Battery Type | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery |
| Battery brand | Wei Rui Electric | CATL | CATL |
| battery cooling method | liquid cooling | liquid cooling | liquid cooling |
| battery swap | not support | not support | not support |
| Battery capacity (kWh) | 86 | 100 | 100 |
| Battery energy density (Wh/kg) | 170.21 | 176.6 | 176.6 |
| Official power consumption per 100 kilometers (kWh/100km) | 17.4 | 17.5 | 16.5 |
| Battery Warranty Time | The first owner has unlimited years/mileage (the liability exemption clause shall be subject to the official policy) | The first owner has unlimited years/mileage (the liability exemption clause shall be subject to the official policy) | The first owner has unlimited years/mileage (the liability exemption clause shall be subject to the official policy) |
| battery charging time | Fast charge: to be determined / slow charge: to be determined | Fast charge: to be determined / slow charge: to be determined | Fast charge: to be determined / slow charge: to be determined |
| gearbox | |||
| Abbreviation | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox |
| Number of gears | 1 | 1 | 1 |
| gearbox type | fixed gear ratio | fixed gear ratio | fixed gear ratio |
| chassis steering | |||
| drive mode | Dual motor four-wheel drive | Dual motor four-wheel drive | Dual motor four-wheel drive |
| Front Suspension Type | Double wishbone independent suspension | Double wishbone independent suspension | Double wishbone independent suspension |
| rear suspension type | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension |
| Power Steering Type | electric assist | electric assist | electric assist |
| Body structure | load-bearing | load-bearing | load-bearing |
| wheel brake | |||
| Front Brake Type | Ventilated Disc | Ventilated Disc | Ventilated Disc |
| rear brake type | Ventilated Disc | Ventilated Disc | Ventilated Disc |
| Parking Brake Type | electronic parking | electronic parking | electronic parking |
| Front tire specification | 255/55 R19 | 255/45 R21 | 255/45 R21 |
| rear tire specification | 255/55 R19 | 255/45 R21 | 255/45 R21 |
| Spare tire specification | none | none | none |
ZEEKR 001 All Electric Sedan Power
CLTC comprehensive operating range up to 750km1
Maximum charging rate 4C, 15min can be charged from 10% to 80%2, charge for 5 minutes, the battery life increased by 210km2;
When the power is greater than 50%, the motor of the dual motor model can be full power output
The CLTC comprehensive operating range reaches 675km1
Maximum charging rate 5C, 1.5min can be charged from 10% to 80%3, 5 minutes of charging, the battery life increased by 256km3;
It can still exert strong power at low temperature to achieve full temperature lightning charging
