Configuration Table
| COMPLETE VEHICLE SPECIFICATION | |
| Length(mm) | 5100 |
| Width(mm) | 1685 |
| Height(mm) | 1998 |
| Wheelbase(mm) | 3280 |
| Front/Rear overhang(mm) | 580/1240 |
| Angle of approach/Departure(°) | 38/21 |
| Curb weight(Kg) | 1630 |
| Maximum total mass(Kg) | 3510 |
| Maximum passengers | 8+2+1 |
| Maximum speed(Km/h) | 80 |
| Maximum gradability | ≥20% |
| Minimum ground clearance(mm) | ≥150 |
| Minimum turning radius(m) | ≤11 |
| Cruise mileage(km)(fully loaded) | ≥200 |
| CHASSIS SPECIFICATION | |
| Items | Specification |
| Motor | 30/60Kw,PMSM |
| Front axle | Disc brake |
| Rear axle | Drum brake |
| Suspension | Front independent suspension, rear leaf spring suspension |
| Tyre | 185R14LT |
| Steel rim | Yes |
| Parking brake | Hand brake |
| Steering system | Electronic assistance |
| Steering wheel | Chinese brand |
| ABS | Yes |
| Tool kit | Yes |
| BODY SPECIFICATION | |
| Drive mode | RHD |
| Sun visor | 1 driver |
| chair | Driver manual four-way adjustment, fabric seat fabric |
| Exterior rearview mirror | Manual, adjustable |
| Interior rearview mirror | Yes |
| car window | Power windows |
| car door | Left and right front doors + Manual side sliding door |
| Front windshield | Double laminated glass |
| Driver's door and window | Driver's door and passenger's door electric window, white toughened glass |
| Cargo window glass | White tempered glass |
| Paint | Solid color paint |
| Miscellaneous | The last row of seats can be folded |
| Roof luggage rack | |
| ELECTRICAL SPECIFICATION | |
| Power Battery pack | Lithium iron phosphate battery,37.2Kwh |
| AC | YES |
| 12V/Battery | 12V |
| Wiper | YES |
| dipped headlight | YES |
| high beam | YES |
| Rear fog lamp | YES |
| Instruments | YES |
| USB | 1 |
| Central locking | YES |
| Audiovisual system | radio |
| Charging receptacle | Chinese Standard(European Standard Option) |
| Miscellaneous | Eco |
| Tbox | |
| Reversing image | |

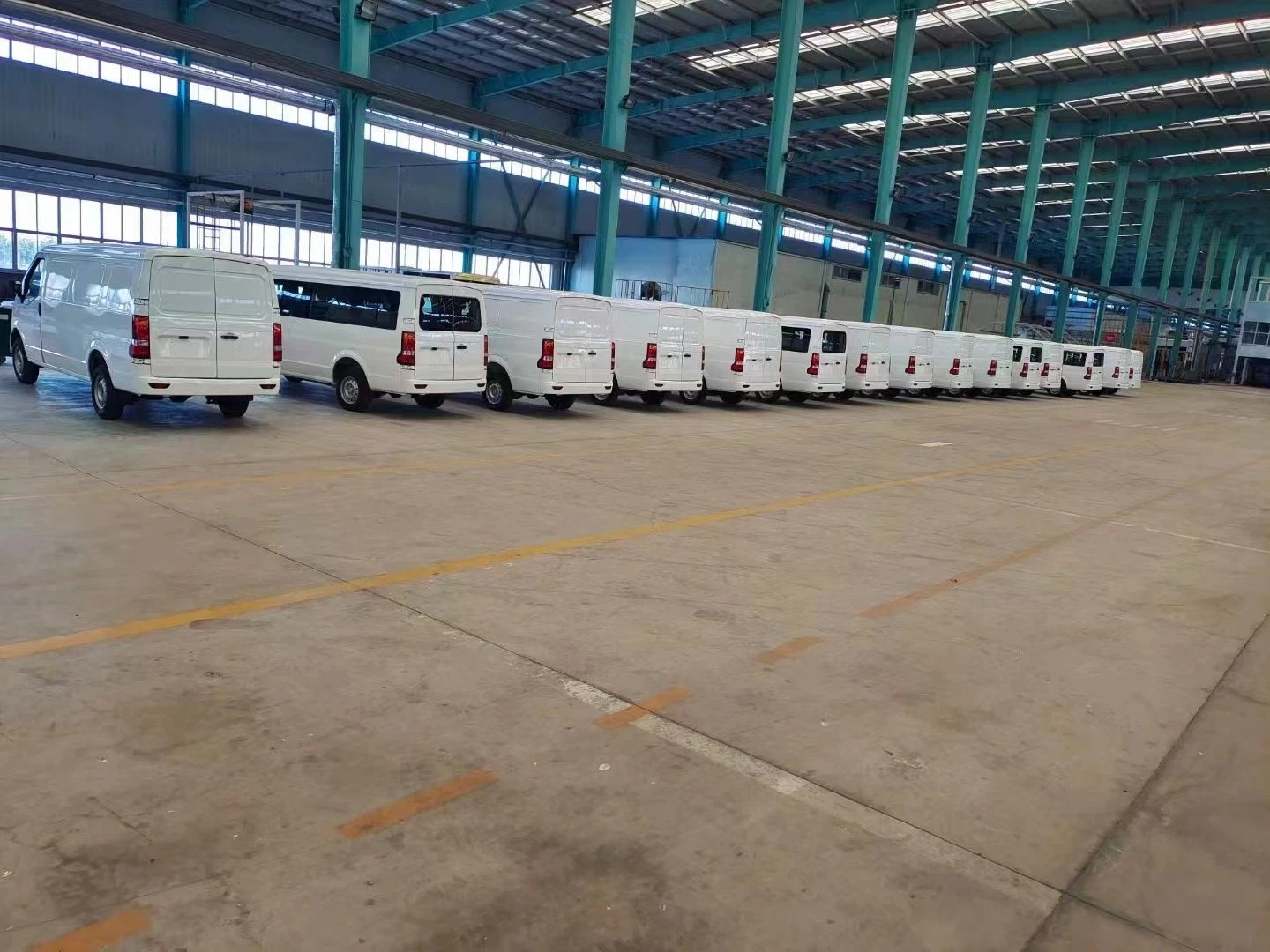

FACTORY PHOTOS：
