Item |
AUCAN 4F20TC |
AUCAN 4F25TC |
|
Configuration |

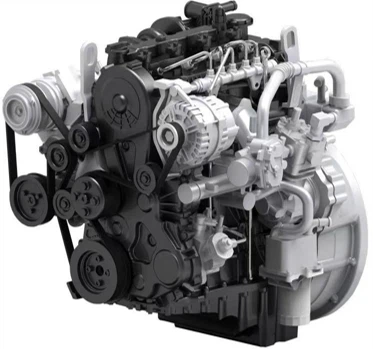

Vertical in-line, 4-cylinder, water cooled, diesel engine |
|
|
Chamber of combustion |
Direct injection |
|
|
Firing order |
1-3-4-2 |
|
|
Rated power/speed - kW/rpm |
120/4000 |
116/3000 |
|
Max. torque/speed - N.m/rpm |
390/1800-2600 |
420/1400-2200 |
|
Bore*stroke - mm |
81*95.5 |
90*98.25 |
|
Displacement - L |
1.968 |
2.499 |
|
Compression ratio |
16.2:1 |
17.5:1 |
|
Idle speed - rpm |
750±50 |
725±50 |
|
Min. fuel consumption - g/kW.h |
<208 |
<199 |
|
Max. exhaust temperature - °C |
<800 |
<800 |
|
Fuel injection system |
High pressure common rail |
|
|
Lubricating method |
Pressure & splash combined type |
|
|
Rotation of crankshaft |
Counter-clockwise - viewed from flywheel |
|
|
Aspiration |
Turbo & inter-cool |
|
|
Emission level |
Euro 3 - 6 |
|
|
Dimension - mm |
609*672*826 |
744*738.7*736.7 |
|
Dry weight - kg |
205 |
235 |
how to order:
please provide VIN number and
