| SLK6122D SPECS | ||||||
Parametes |
Bus model | SLK6122D | ||||
| Dimension(mm) | 11990*2450*3580 | |||||
| Engine model | SC9DF300Q3, 300HP | |||||
Engine parameter |
Manufacturer | Emission standard |
Displacement(L) | Power(kw/rpm ) |
Torque(Nm/rpm) | |
| Shanghai Diesel Engine Co., Ltd | Euro 3 |
8.82 |
221/2200 |
1250/1400 |
||
| G.V.W.(kg) | 17000 | |||||
| Luggage compartment(M3) | 7.7 | |||||
| Max. speed(km/h) | 120 | |||||
Chassis |
Chassis manufacturer | Shanghai Shenlong Bus Co.,Ltd. | ||||
| Clutch | Φ430 diaphragm spring | |||||
| Gearbox | 6-speed manual gearbox | |||||
| Steering system | Hydraulically-assisted power steering system | |||||
| Brake system | Dual circuit pneumatic brake , energy storage spring parking brake,retarder, ABS | |||||
| Suspension system | Air suspension | |||||
| Steering wheel position | RHD | |
| Tire | 295/80R22.5 | |
| Fuel tank (L) | 300 | |
| Others | Battery 200AhX2 | |
Body |
Seats | 45+1+1 |
| Passenger door | Front pneumatic out-swing aluminum alloy door | |
| Side window glass | All-fixed tempered glass side window,Build-in sliding window for driver window | |

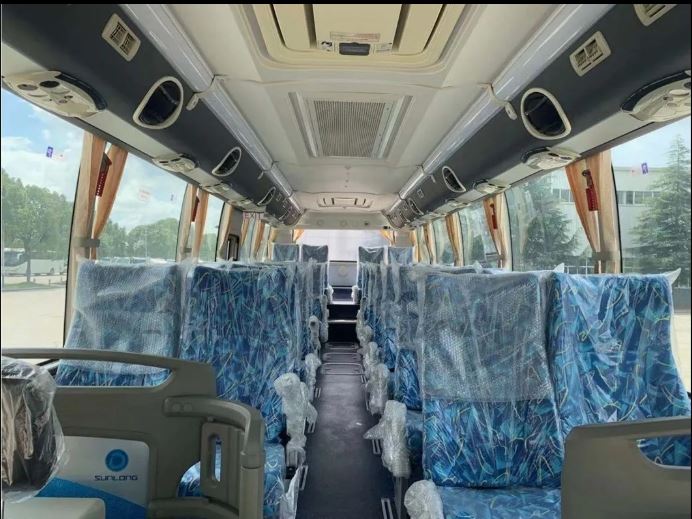

| Interiors | Integral molding duct without internal luggage rack | |
| Air conditioner (A/C) | Roof-mounted A/C,cooling capacity 31000kcal/h | |
| Heating system | Optional | |
| Audio & video system | Optional | |
Others |
Single bus instrument,digital clock,reading lamp, emergency hammer with sound-light alarm,dry powder extinguisher etc. |
