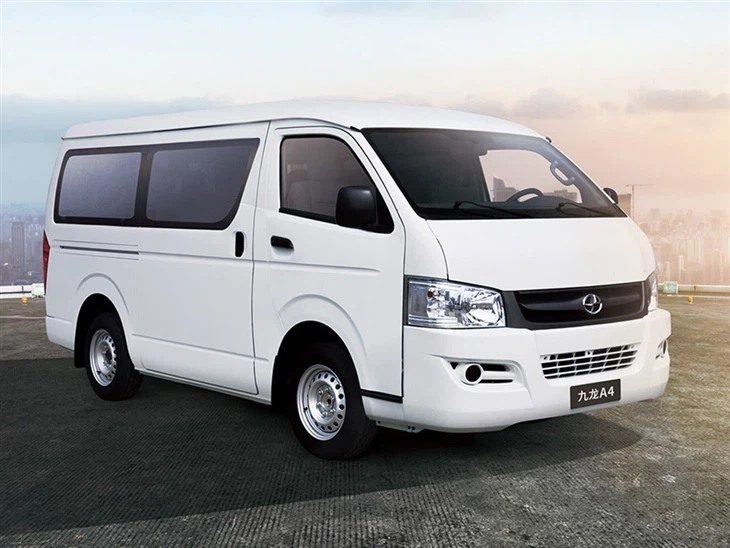

Joylong A4 Hiace Mini Bus Specifications
| Model | HKL6480C | |||||||
| Length*width*height | 4840*1880*2080(Low roof ) 4840*1880*2285(High roof ) |
|||||||
| Wheelbase (mm) | 2570 | |||||||
| Engine model | DK4B1 | |||||||
| Fuel type | Diesel engine | |||||||
| Emission | EURO 3 | |||||||
| Displacement | 2.498 | |||||||
| Rated output( kw/rpm) | 100/3600 | |||||||
| Max. torque (N.m/rpm) | 260/1600-2400 | |||||||
| Seats | 16 fabric economic seat (3+3+3+3+4) | |||||||
| Capacity of fuel tank(L) | 70 | |||||||
| Clutch | single disc, hydraulic control | |||||||
| Transmission type | manual 5 speeds, flexible shaft control | |||||||
| Tire | 195R15C radial tire | |||||||
| Brake system | disc/ drum, ABS+EBD, initiative vacuum booster | |||||||
| Suspension | front double wishbone independent suspension/ rear variable rate leaf spring (four pcs) | |||||||
| Steering system | hydraulic power steering power | |||||||
| Rear axle | 4.1 differential ratio,integrated pressing rear axel | |||||||
| Equipment | ||||||||
| Exterior | 1.Color: white | 2.Combination lamp | ||||||
| 3.High mount brake lamp | 4.Body-color plated grill | |||||||
| 5.Aluminium wheels *5 | 6.Anti-UV front windshield | |||||||
| 7.Black side window glasses | 8.Manual sliding door, black door knod | |||||||
| 9.4 sliding window in passenger area | ||||||||
| Interior | 1.Gray interior | 2. Combination dashboard | ||||||
| 3.Driver& co-driver seat with moving forward/backward,adjustable backrest | 4.Passenger area: the 1st row,3 seats,the 2nd row 3 seats, the 3 rd (2+1) seats, adjustable backrest | |||||||
| 5.Passenger area: the 4 th row, 4 seats | 6..PVC roof, simple side panel | |||||||
| 7.PVC floor | 8.REMOVE Front heater(including defroster) & rear heater | |||||||
| 9. 36mm enhanced radiator and double condenser | 10.Overhead light (1 piece) | |||||||
Functional parts |
1.Manual wing mirror | 2. Manual door lock | ||||||
| 3.Power driver & co-driver window | 4.Anti-glare inner rear view mirror | |||||||
| 5.Intermittent front wiper, front washer | 6. Visor (driver side) | |||||||
| 7.Tiltable steering wheel | 8.Radio( with USB connect), 2 speakers | |||||||
